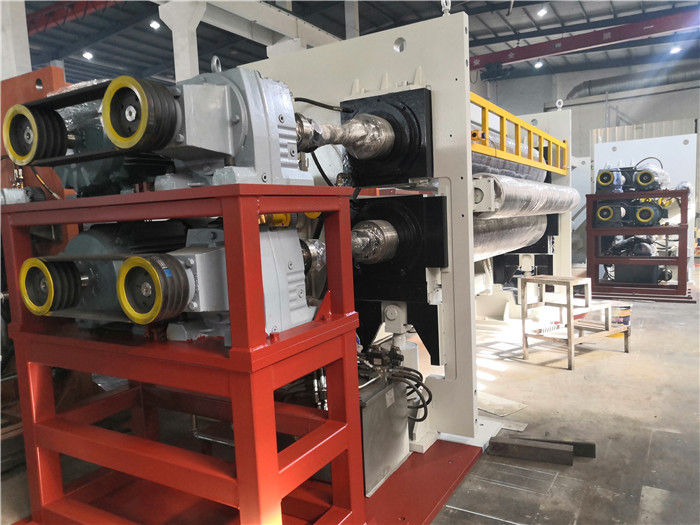

ISO9001 Embossing Calender Machine
ISO9001 Embossing Calender Machine
풍모 갤러리 제품 설명 따옴표를 요구하십시오
기본 정보
원래 장소: 중국
브랜드 이름: QiaoDe
인증: CE, ISO9001
모델 번호: Φ480×2020
하이 라이트:

ISO9001 압형기 기계


CE 압형기 Machine


650m/min 캘린더 압연 기계

결제 및 배송 조건
제품 사양
캘린더 재료: 고품질 합금 강철
난방 작풍: 주변 기기는 구멍을 팝니다, 가열 스피드가 빠르고 명부의 표면 온도가 심지어 있습니다.
목록 직경: Φ480-φ850
최대 폭: 6000mm
최대 기계적 시속: 650m/min
최대 라인 압력을 캘린더에 거세요: 150 kg/cm2
제품 설명

Embossing Calender Machine


We are professional in nonwoven fabric calender machines because of more than 25 years rich experience.

  • Production Capacity: 150 sets per year
  • Automatic Brand: Automatic
  • Brand name: Qiaode
  • Certification: CE, ISO9001
  • After-sales service: Free spare parts, Video technical support, Online support
  • Warranty: 12 months
  • Roller Diameter: φ480-φ850
  • working width: 1600-6000mm
  • Place of Origin: Jiangsu, Province
  • Dimension: customization
  • Power: customization
  • Voltage: customization
  • Type: two rollers . three rollers
  • Speed: 150-600m/min



Calender Material High-quality alloy steel.
Heating Style Peripheral holes, the heating speed is fast and the surface temperature of roll is even.
Roll Diameter Φ480-φ850
Maximum Width 6000mm
Maximum Mechanical Speed 650m/min
Calender Maximum Line Pressure 150kg/cm2
Calender Drive Style One Motor with one roller or one motor with two rollers



  1. The calender is for the purpose to take the heat treatment on products. With a certain heating temperature and pressure, the thickness, appearance and some properties of products can be changed.
  2. Health care: surgical gowns, protective clothing, masks, sanitary napkins, sanitary pads, etc.
  3. Household products: Wallpaper, bed sheets, bedspreads, table cloths, shopping bags, bags,etc.
  4. Industrial and agricultural: Nursery cloth, protective cloth, filtering material and reinforcement material.


Competitive Advantage:

  • Advantages of our machines:
  • High output and high quality
  • Advanced technology
  • Best after-sale service

After-sale service

  • The warranty of our machine is 12 months and service is available lifelong.
  • The cost caused by the seller’s expert in customer’s country (including shuttle trip ticket between China and the Buyer’s, inland traffic, medical fees, lodging, dinner and so on) will be covered by the buyer.
  • Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible.
  • We can send enough technicians to the Buyer’s company for installation and testing the machines.
  • We supplies the complete technical documents and the relative drawings of the electric components which were written in Chinese and English.
  • We can provide you some easily broken spare parts.

Our Company


Qiaode Machiney has improved technology, and successfully certified with ISO9001 quality system certificate and CE certificate. Now we own total dozens of different kinds of products such as Y-type three-roller calender machine, Swimming Roller, two roller calender machine, slitting machine, auto fabric winder, web-forming machine,etc.




1. Are you a factory or trading company?
Yes, we are a factory.


2. What is the MOQ?
1 package.


3. what Is the production and delivery time?
90 working days.


4. What is your payment term?
We accept L/C, T/T.
